Descrição
Parâmetros Técnicos
- Voltage Range:AC80V-260V/50HZ-60HZ
- Power Dissipation:5W
- Working Temperature:-10℃~60℃
- Coordinate Display:1，2，3 Axis
- Operating Keypad:Mechanical Keypad
- Input Signal:5V TTL/RS422
- Input Frequency:≤4MHZ
- Resolution:0.1μm，2μm，0.5μm，1μm，2μm，2. 5μm， 5μm，10μm，50um

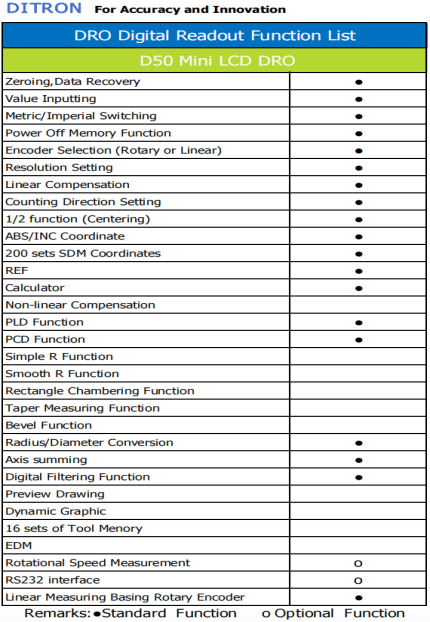

Funcionalidades
- 5″ true color LCD screen,easy to recognizing
- Optional for RPM function and RS232 protocol
- High integration makes the performance be stable
- Lathe mode with Z+Z1 and Diameter&Radius conversion，Milling mode with PLD and PCD
- Smart checking of the inner data and power supply
- Linear scale or rotary encoder can be connected
