Parâmetros Técnicos
- Measuring Length:50mm~1100mm(2’’~43’’)
- Resolution:0.1μm，5μm，1μm，5μm， 10μm
- Output Signal:5V TTL,5V RS422(12V or 24V can be customized)

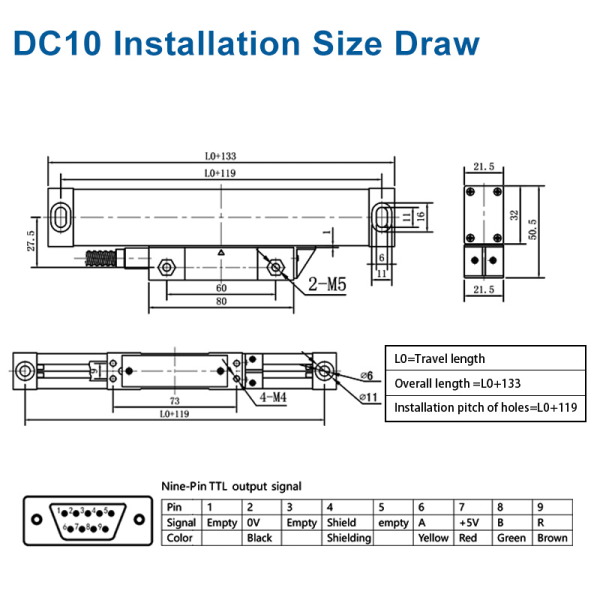

- Cross Section:20.5*31mm
- Accuracy:±5μ，±10μm/M
- Working Temperature:-10℃-60℃
- Sealing Protection:IP55
- Moving Speed:60M/Min
- Reference Point:Every 50mm
Funcionalidades

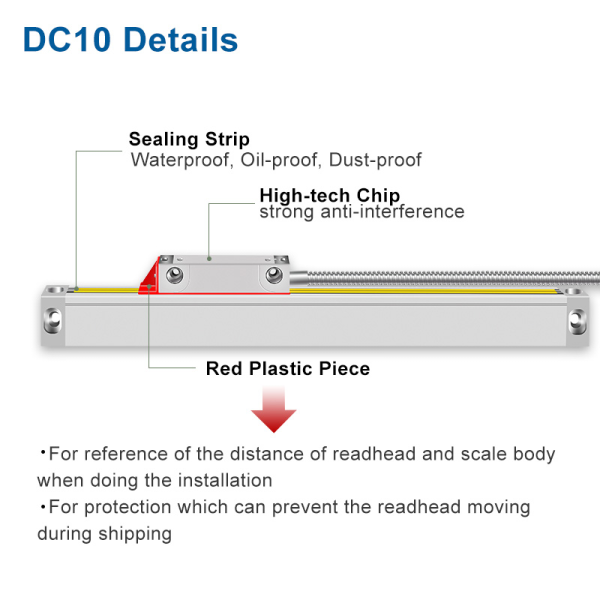

- Vertical five bearings sliding system,smooth and accurate movement
- Calibrated by Laserinterferometer,accuracy guaranteed
- Full sealing structure,swarf and coolant proof
