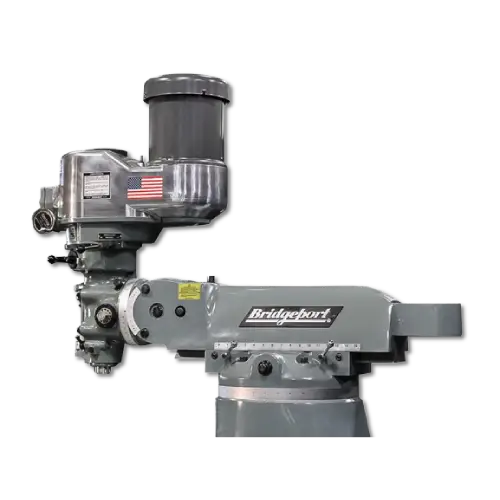

Description
| X-AXIS TABLE TRAVEL | |
| Without Power Feed | 36″ (914mm) |
| With Power Feed | 33″ (838mm) |
| Y AXIS TRAVEL | |
| Without Power Feed | 12″ (306mm) |
| With Power Feed | 12″ (306mm) |

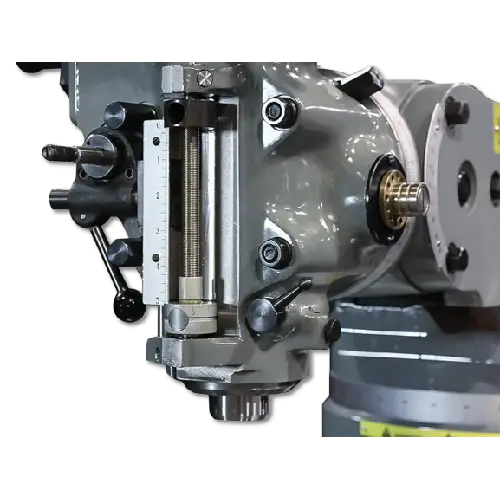

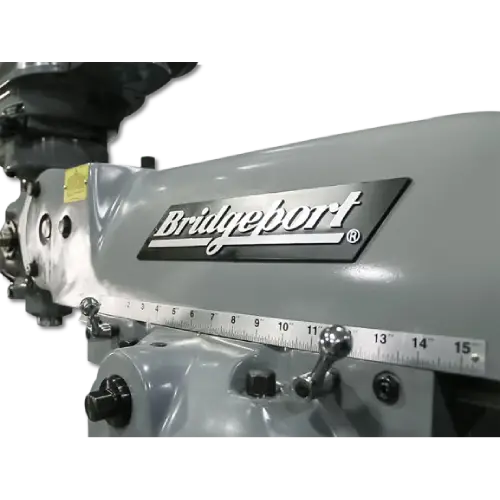

| Quill Travel | 5″ (127mm) |
| Knee Travel | 16″ (406mm) |
| Ram Travel | 12″ (306mm) |
| THROAT DISTANCE | |
| Min | 6.75″ (171mm) |
| Max | 18.75″ (476mm) |
| TABLE TO SPINDLE NOSE | |
| Min | 2.5″ (64mm) |
| Max | 18.25″ (463mm) |

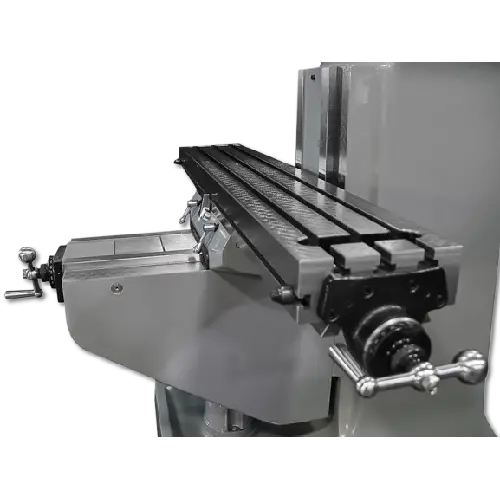

| TABLE | |
| Overall Size | 9″ x 49″ (299 x 1245mm) |
| Working Surface | 9″ x 49″ (299 x 1245mm) |
| Number of T-Slots | 3 |
| T-Slot Centers | 2.5″ (64mm) |
| T-Slot Size | 0.625″ (16mm) |
| Height Above Floor Maximum | 47.25″ (1200mm) |

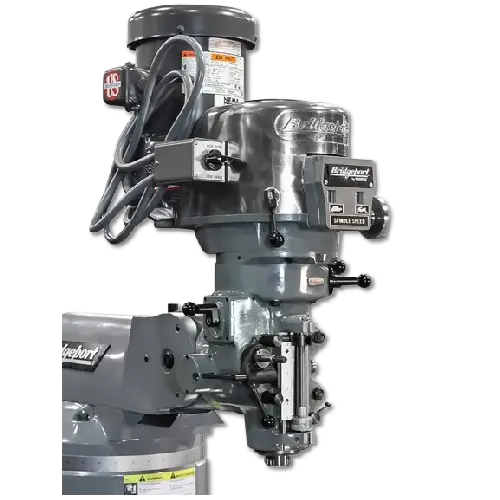

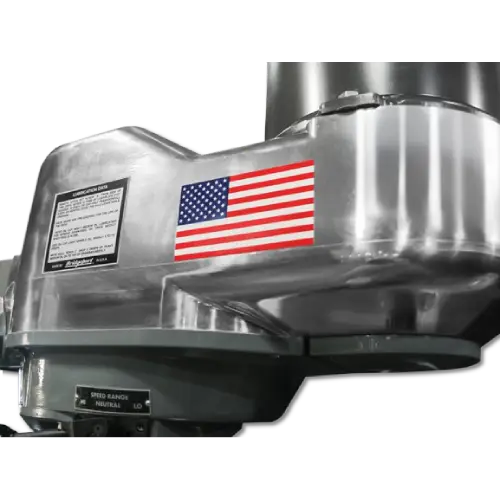

| SPINDLE CONSTRUCTION | |
| Spindle Diameter | 1.875″ (48mm) |
| Quill Diameter | 3.375″ (86mm) |
| SPINDLE MOTOR HP | |
| 30 Min Duty Rated | 3HP |
| Continuous | 2HP |
| SPINDLE TAPER | |
| Standard | R-8 |
| Optional | NMTB30 |
| SPINDLE SPEED RANGE | |
| Low Range | 60 – 500 RPM |
| High Range | 500 – 4200 RPM |
| MACHINING CAPACITIES | |
| Power Quill Feed Drilling (mild steel) | 3/8″ (9.5mm) |
| Miling (mild steel) | 2 CI/min |
| Boring Range (mild steel) | 6″ Dia (152mm) |
| POSITIONING | |
| Feedrate Range | N/A |
| Minimum Increment | N/A |
| SPACE AND WEIGHT | |
| Floor Area | 84″ x 120″ (2140 x 3048mm) |
| Height | 87″ (2210mm) |
| Net Weight | 1930lbs (875kgs) |
| Shipping Weight | 2075lbs (941kgs) |
| ELECTRICAL SUPPLY | |
| Input Power | 208/230/460 |
| 3 phase 50/60 cycle | |
| Power Capacity | 4 KVA |
